| Type | Size | Reinforcement | Beads/m | Stone Hardness | Line Speed | Cutting Speed | Life |
|---|---|---|---|---|---|---|---|
| Granite Quarrying | 11.5mm | Rubber / Rubber+Spring | 40/m | Soft Granite | 25-30m/s | 25-30m/s | 20-35m²/m |
| Mid-hard Granite | 10-15 m²/h | 12-18m²/m | |||||
| Hard Granite | 8-12 m²/h | 7-10m²/m | |||||
| Granite Quarrying | 11.5mm | Rubber / Rubber+Spring | 40/m | Neutral & slightly hard ground | 25-30m/s | 10-15 m²/h | 15-25m²/m |
| Granite Quarrying | 11.5mm | Rubber / Rubber+Spring | 40/m | Neutral & slightly soft texture | 25-30m/s | 15-20 m²/h | 25-35m²/m |

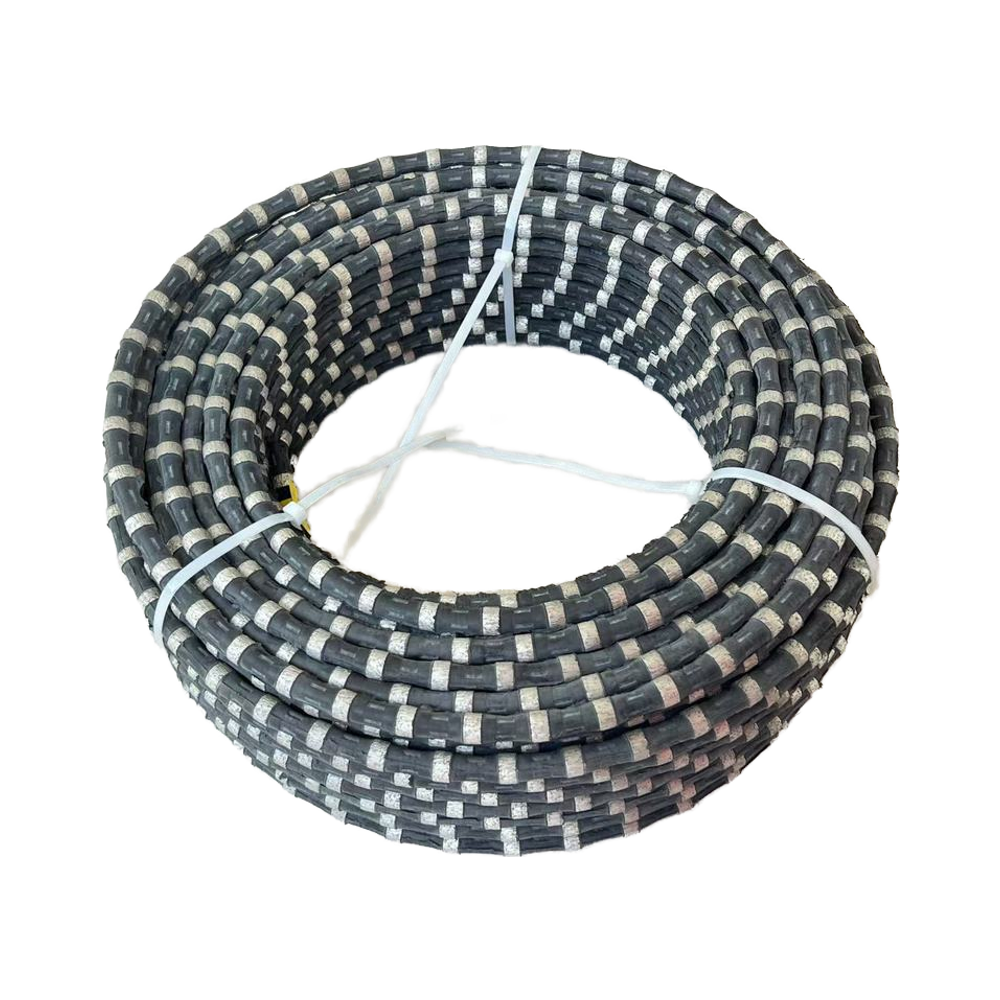

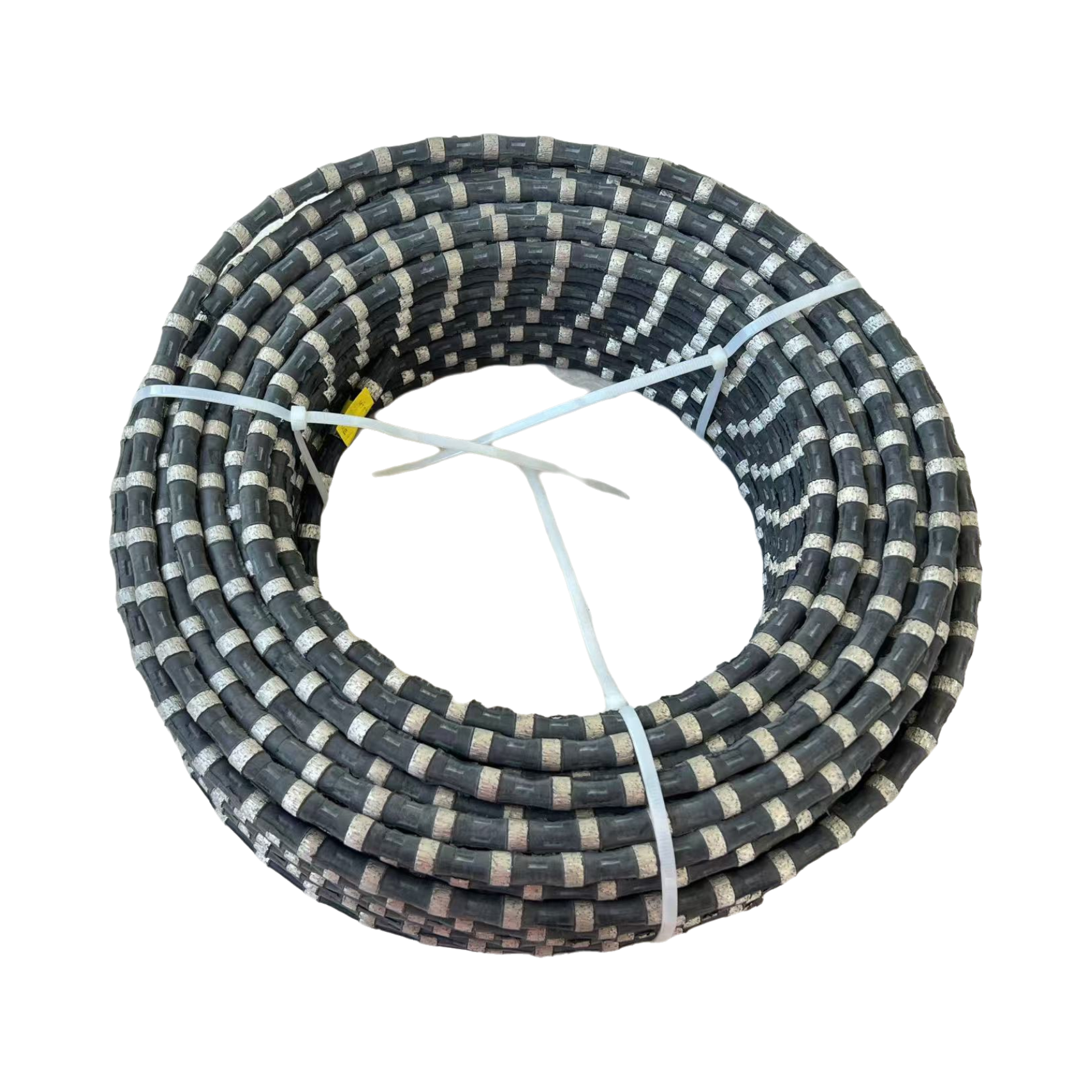

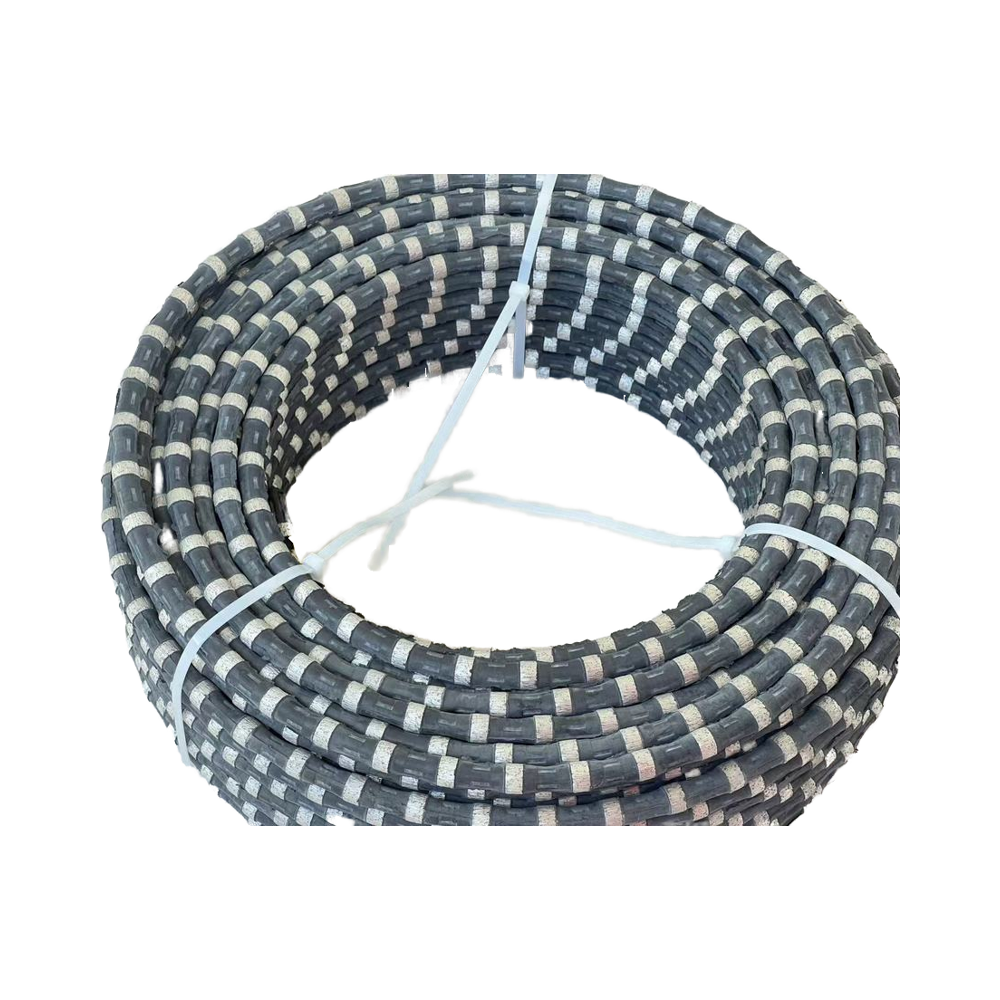

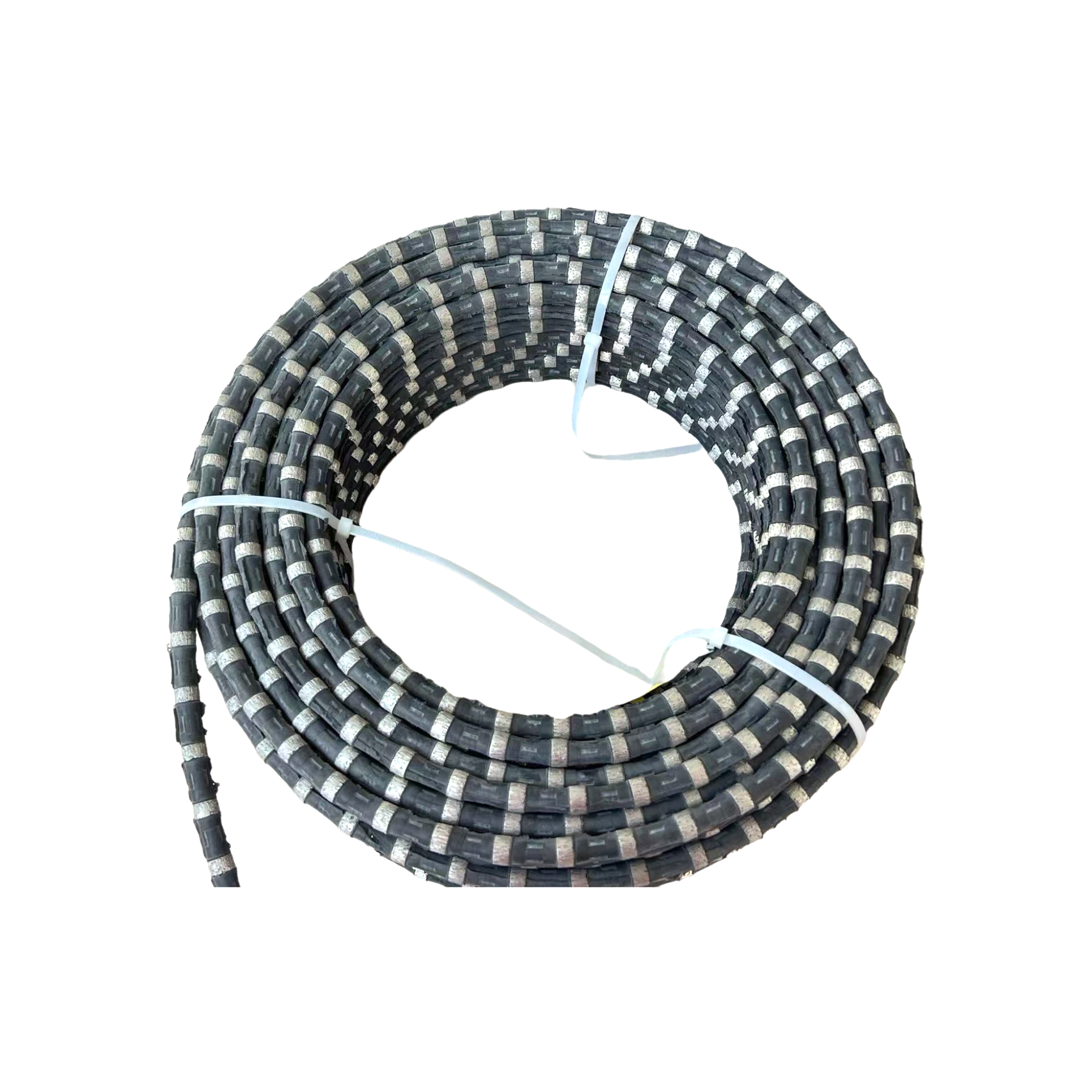

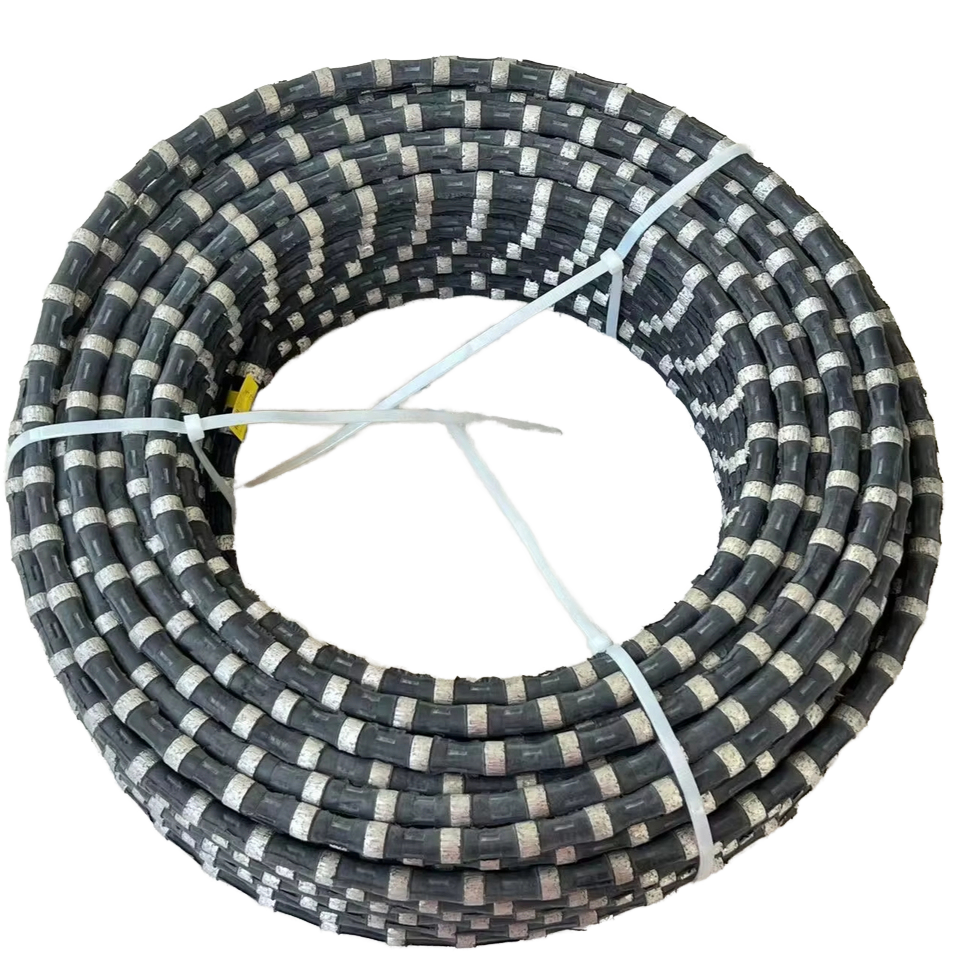

The wire saw is reinforced using Rubber, Plastic, or Spring configurations. This allows the wire rope to match different stone hardness requirements and environmental demands, ensuring durability and safety during operation.

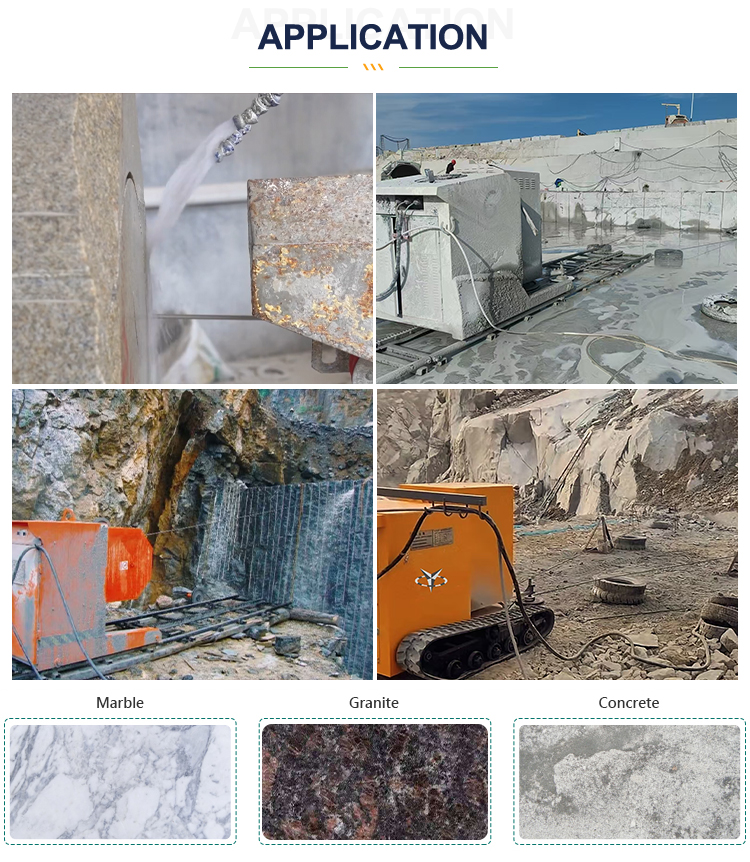

It is primary designed for quarrying, block squaring, profiling, and cutting of concrete and various hardness grades of granite stone (ranging from soft to hard granite structures).
The standard operating line speed ranges between 25m/s and 30m/s, which ensures an optimal balance between fast cutting speed and extended tool life.

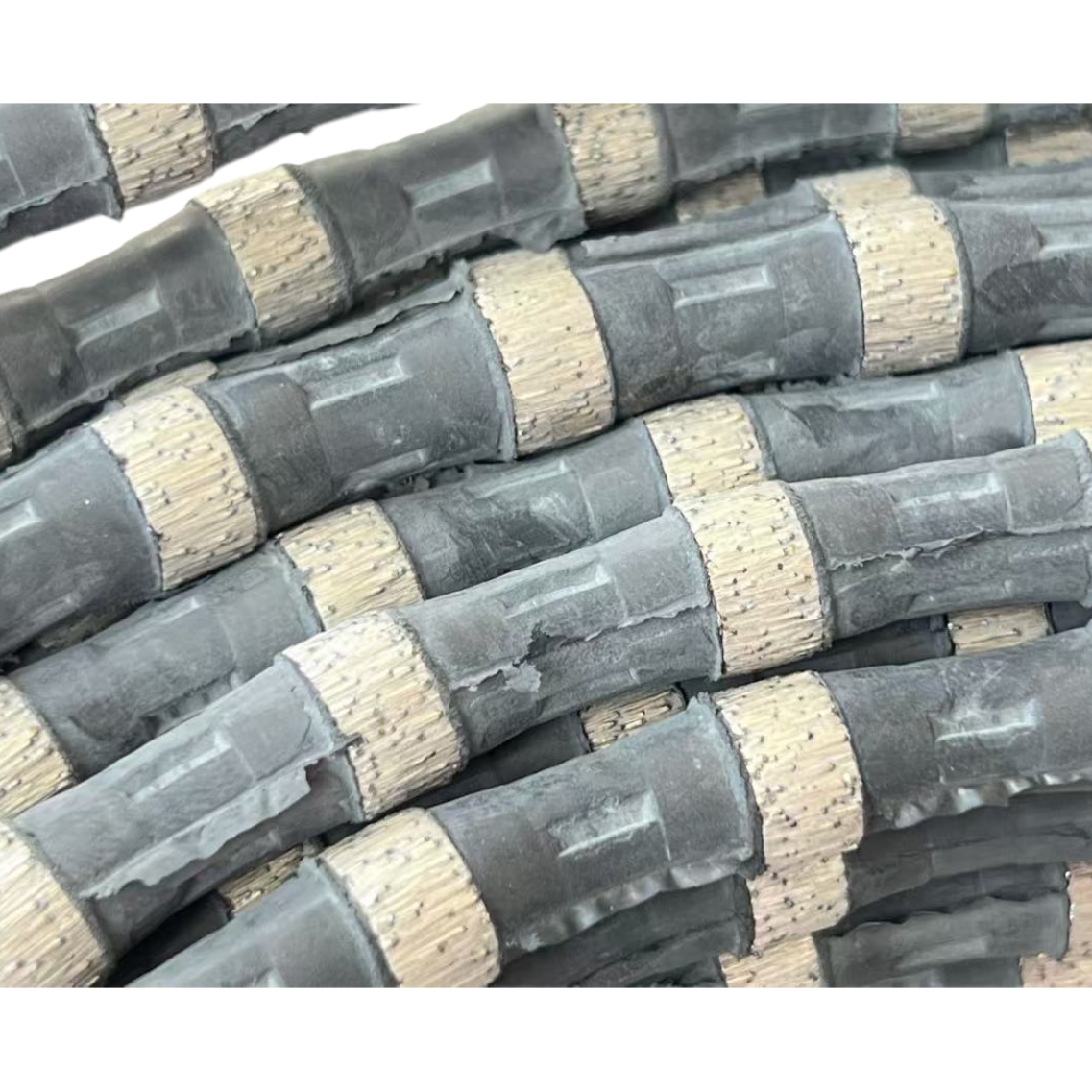

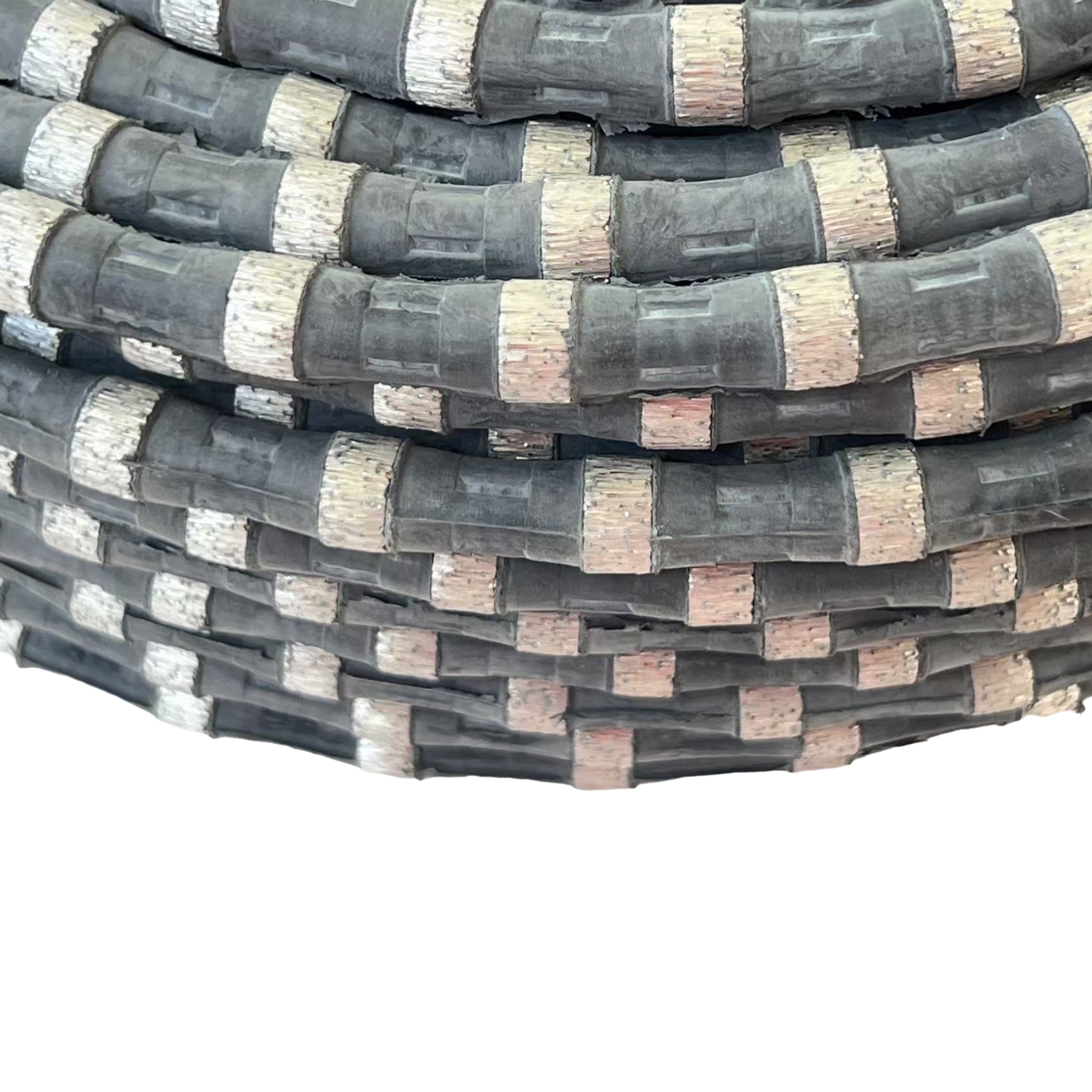

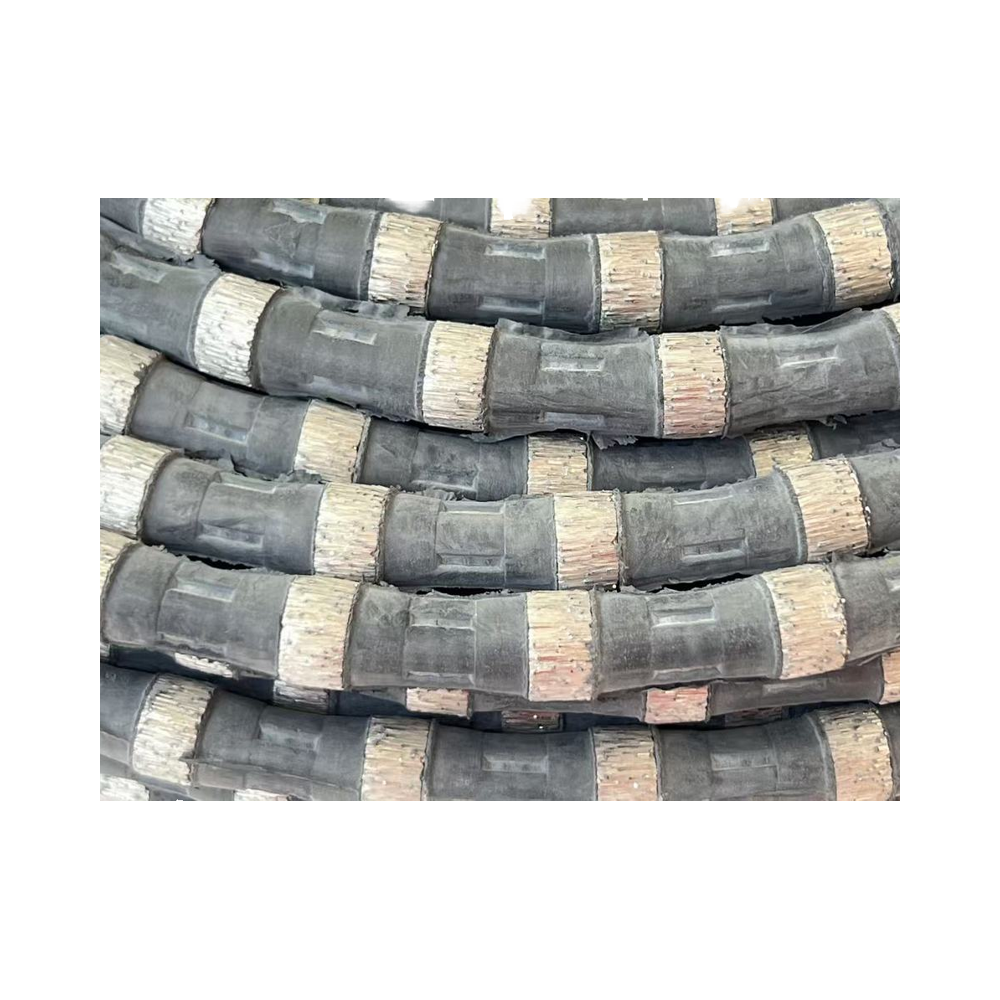

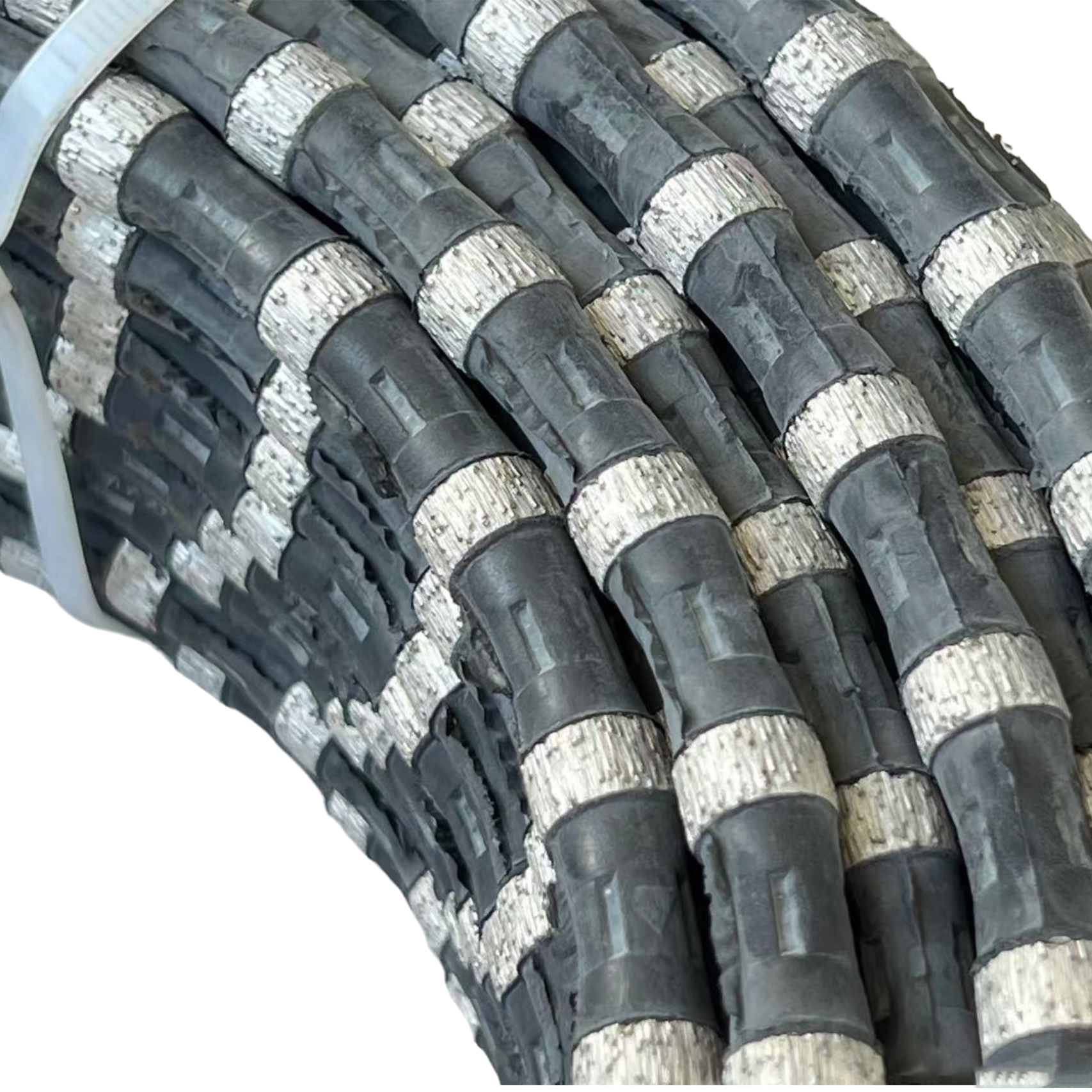

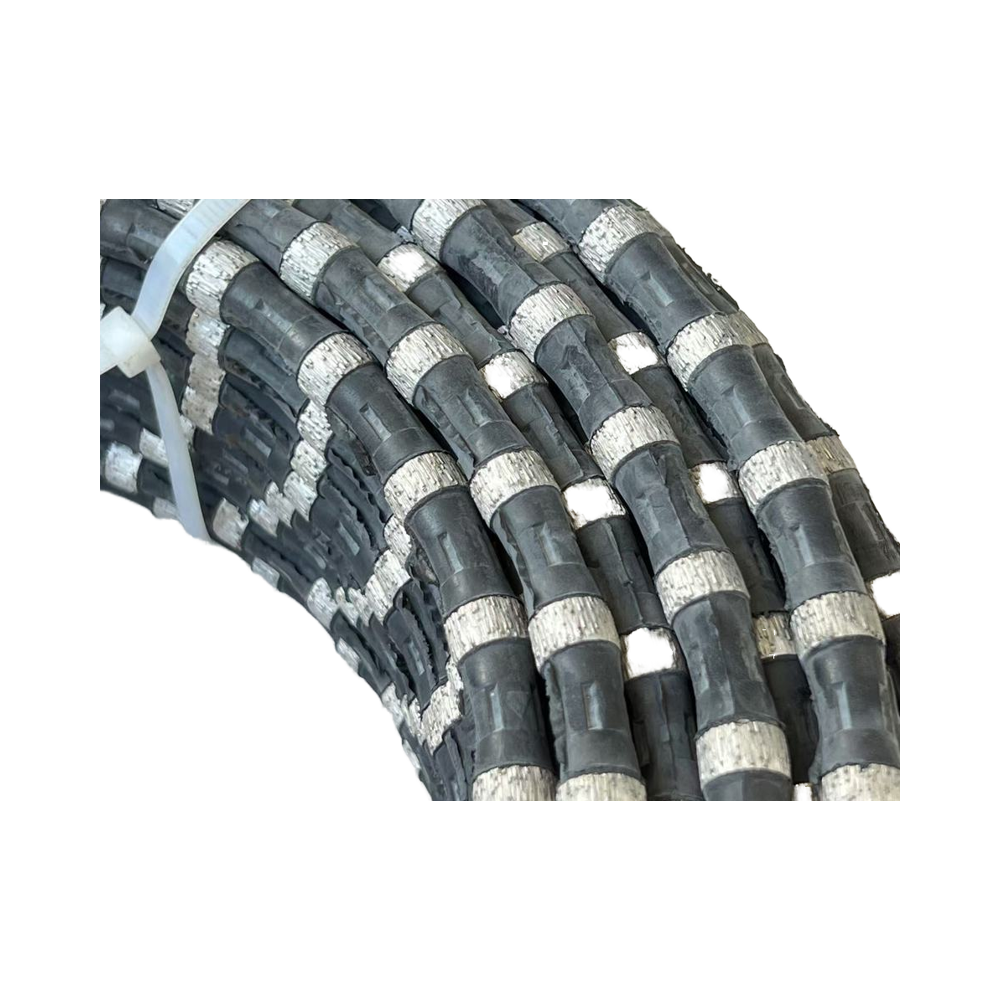

The wire saw features a high-performance bead density of 40 beads per meter, providing continuous and efficient cutting actions.
Depending on the stone hardness, the service life ranges from 7-10 m²/m for hard granite, up to 20-35 m²/m for soft granite, neutral texture ground, or slightly soft textures.
Our wire saw provides high cutting efficiency, low material waste, smooth and highly accurate cuts, and eco-friendly features. It is built under rigorous hot-press and cold-press production methods to ensure consistent quality.
